1、基本介绍

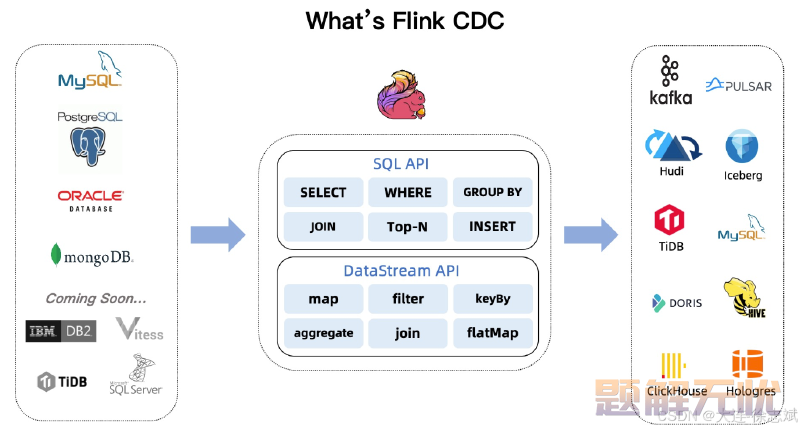

Flink CDC 是 Apache Flink 提供的一个功能强大的组件，用于实时捕获和处理数据库中的数据变更。可以实时地从各种数据库（如MySQL、PostgreSQL、Oracle、MongoDB等）中捕获数据变更并将其转换为流式数据，FlinkCDC 同步数据有两种方式：

1. FlinkSQL
2. Flink DataStream 和 Table API（本文使用该方式）

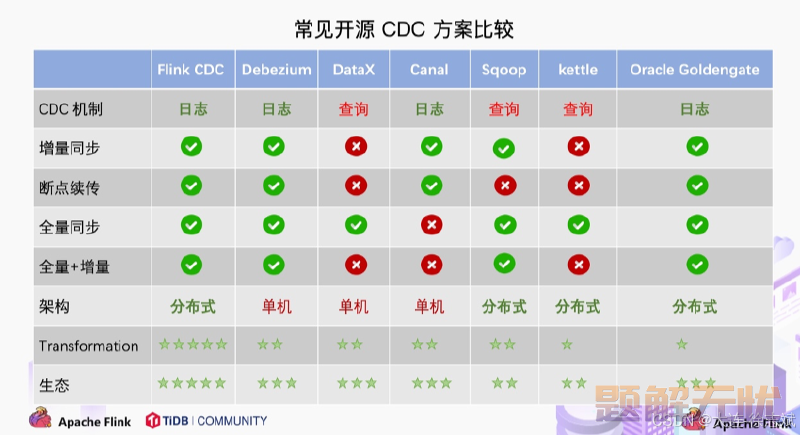

   对比其他的CDC开源方案，发现FlinkCDC是绝大多数场景最好的选择方式，别在傻傻的只关注Canal了，如下图所示：


2、代码实战

2.1、数据源准备

本次我是用MySQL 8.0版本，并且创建好数据库（库名为quick_chat），本次演示表结构如下：

CREATETABLE`quick_chat_msg`(`id`bigintNOTNULLCOMMENT'主键id',`from_id`varchar(20)CHARACTERSET utf8 COLLATE utf8_unicode_ci DEFAULTNULLCOMMENT'账户id（发送人）',`to_id`varchar(20)CHARACTERSET utf8 COLLATE utf8_unicode_ci DEFAULTNULLCOMMENT'账户id（接收人）',`relation_id`varchar(50)CHARACTERSET utf8 COLLATE utf8_unicode_ci DEFAULTNULLCOMMENT'发送关联',`content`varchar(500)DEFAULTNULLCOMMENT'消息内容',`msg_type`tinyint(1)DEFAULTNULLCOMMENT'消息类型（1：文字，2：语音，3：表情包，4：文件，5：语音通话，6：视频通话）',`extra_info`varchar(500)DEFAULTNULLCOMMENT'额外信息',`create_time`datetimeDEFAULTNULLCOMMENT'创建时间',`deleted`tinyint(1)DEFAULTNULLCOMMENT'删除标识',PRIMARYKEY(`id`)USINGBTREE)ENGINE=InnoDBDEFAULTCHARSET=utf8mb3;

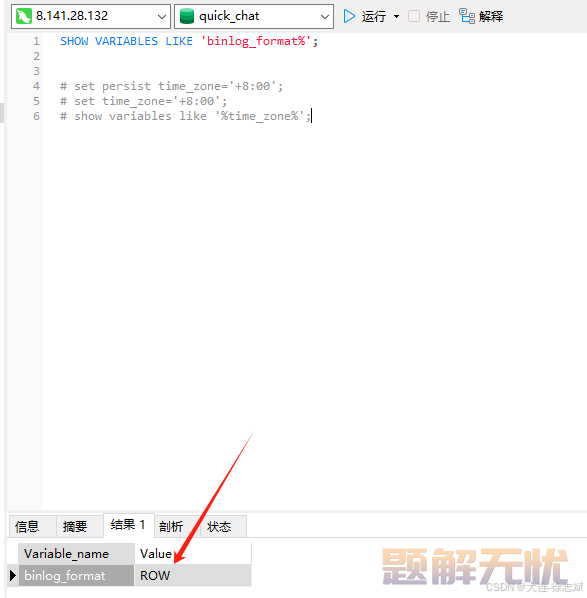

需要保证MySQL的Binlog格式是ROW，不过MySQL 8.0版本格式默认就是ROW：

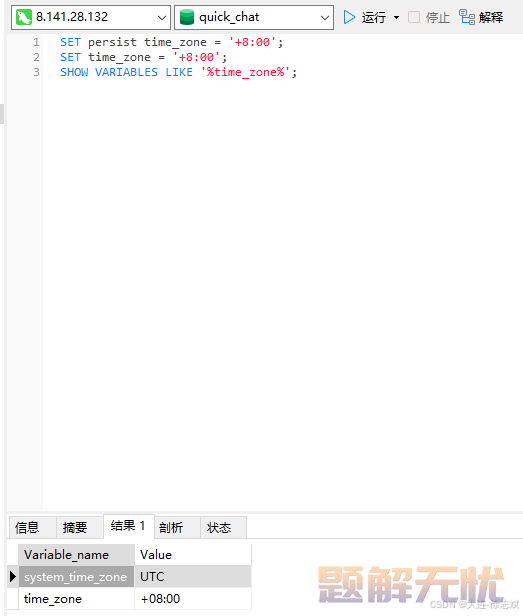

最后，要把数据库时区配置好，否则会出现问题，命令如下：

SET persist time_zone ='+8:00';SET time_zone ='+8:00';SHOW VARIABLES LIKE'%time_zone%';

2.2、代码实战

首先，引入Flink CDC相关依赖，内容如下：

<dependencies><!-- Flink connector连接器基础包 --><dependency><groupId>org.apache.flink</groupId><artifactId>flink-connector-base</artifactId><version>1.14.0</version></dependency><!-- Flink CDC MySQL源 --><dependency><groupId>com.ververica</groupId><artifactId>flink-sql-connector-mysql-cdc</artifactId><version>2.3.0</version></dependency><!-- Flink DataStream数据流API --><dependency><groupId>com.ververica</groupId><artifactId>flink-connector-mysql-cdc</artifactId><version>2.2.0</version><scope>provided</scope></dependency><!-- Flink客户端--><dependency><groupId>org.apache.flink</groupId><artifactId>flink-clients_2.12</artifactId><version>1.14.0</version></dependency><!--Flink WebUI，端口8081（默认没有开启）--><dependency><groupId>org.apache.flink</groupId><artifactId>flink-runtime-web_2.12</artifactId><version>1.14.0</version></dependency><!--Flink Table API&SQL程序可以连接到其他外部系统，用于读写批处理表和流式表。--><dependency><groupId>org.apache.flink</groupId><artifactId>flink-table-runtime_2.12</artifactId><version>1.14.0</version></dependency></dependencies>

第二步，开发 Sink 监听类，用于监听 MySQL 数据变化：

importorg.apache.flink.configuration.Configuration;importorg.apache.flink.streaming.api.functions.sink.RichSinkFunction;publicclassMySinkHandlerextendsRichSinkFunction<String>{@Overridepublicvoidinvoke(String value,Context context)throwsException{System.out.println(value);}@Overridepublicvoidopen(Configuration parameters)throwsException{}@Overridepublicvoidclose()throwsException{}}

最后，配置好 Flink CDC 监听进程，随着项目启动运行：

importcom.ververica.cdc.connectors.mysql.source.MySqlSource;importcom.ververica.cdc.debezium.JsonDebeziumDeserializationSchema;importorg.apache.flink.api.common.eventtime.WatermarkStrategy;importorg.apache.flink.configuration.Configuration;importorg.apache.flink.configuration.RestOptions;importorg.apache.flink.streaming.api.datastream.DataStreamSink;importorg.apache.flink.streaming.api.environment.StreamExecutionEnvironment;importorg.springframework.stereotype.Component;importjavax.annotation.PostConstruct;@ComponentpublicclassMySqlSourceExample{@PostConstructpublicvoidinit()throwsException{// 配置监听数据源MySqlSource<String> source =MySqlSource.<String>builder().hostname("8.141.28.132").port(3306)// 数据库集合，可以配置多个.databaseList("quick_chat")// 表集合，可以配置多个.tableList("quick_chat.quick_chat_msg").username("root").password("root").deserializer(newJsonDebeziumDeserializationSchema()).includeSchemaChanges(true).build();// 配置 Flink WebUIConfiguration configuration =newConfiguration(); configuration.setInteger(RestOptions.PORT,8081);StreamExecutionEnvironment env =StreamExecutionEnvironment.getExecutionEnvironment(configuration);// 检查点间隔时间// checkpoint的侧重点是“容错”，即Flink作业意外失败并重启之后，能够直接从早先打下的checkpoint恢复运行，且不影响作业逻辑的准确性。 env.enableCheckpointing(5000);DataStreamSink<String> sink = env.fromSource(source,WatermarkStrategy.noWatermarks(),"MySQL Source").addSink(newMySinkHandler()); env.execute();}}

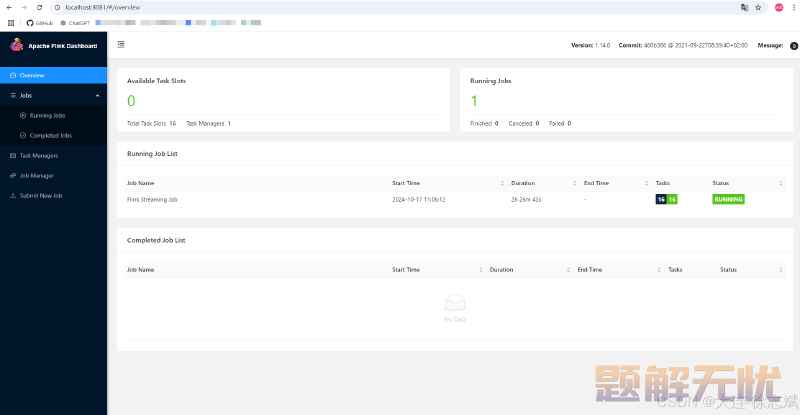

项目启动完毕后，可以通过8081端口访问Flink UI页面：

2.3、数据格式

上述操作完毕后，我对表数据进行了新增、修改、删除操作，控制台可以看到MySQL变更监听日志输出信息：

# 新增{"before": null, "after":{"id":3, "from_id":"dog", "to_id":"cat", "relation_id":"dog:cat", "content":"你好啊", "msg_type":1, "extra_info": null, "create_time":1729164075000, "deleted":0}, "source":{"version":"1.6.4.Final", "connector":"mysql", "name":"mysql_binlog_source", "ts_ms":1729135279000, "snapshot":"false", "db":"quick_chat", "sequence": null, "table":"quick_chat_msg", "server_id":1, "gtid": null, "file":"binlog.000002", "pos":2452, "row":0, "thread": null, "query": null }, "op":"c", "ts_ms":1729135278633, "transaction": null }

# 修改{"before":{"id":3, "from_id":"dog", "to_id":"cat", "relation_id":"dog:cat", "content":"你好啊", "msg_type":1, "extra_info": null, "create_time":1729164075000, "deleted":0}, "after":{"id":3, "from_id":"dog", "to_id":"cat", "relation_id":"dog:cat", "content":"你好啊，小猫咪", "msg_type":1, "extra_info": null, "create_time":1729164075000, "deleted":0}, "source":{"version":"1.6.4.Final", "connector":"mysql", "name":"mysql_binlog_source", "ts_ms":1729135289000, "snapshot":"false", "db":"quick_chat", "sequence": null, "table":"quick_chat_msg", "server_id":1, "gtid": null, "file":"binlog.000002", "pos":2825, "row":0, "thread": null, "query": null }, "op":"u", "ts_ms":1729135288473, "transaction": null }

# 删除{"before":{"id":3, "from_id":"dog", "to_id":"cat", "relation_id":"dog:cat", "content":"你好啊，小猫咪", "msg_type":1, "extra_info": null, "create_time":1729164075000, "deleted":0}, "after": null, "source":{"version":"1.6.4.Final", "connector":"mysql", "name":"mysql_binlog_source", "ts_ms":1729135301000, "snapshot":"false", "db":"quick_chat", "sequence": null, "table":"quick_chat_msg", "server_id":1, "gtid": null, "file":"binlog.000002", "pos":3247, "row":0, "thread": null, "query": null }, "op":"d", "ts_ms":1729135300692, "transaction": null }
