引言：Mamba

2024年04月29日16:06:08，今天开始记录mamba模块的学习与使用过程。

第一章：环境安装

亲测，根据下文的安装步骤，即可成功！

使用代码Vision Mamba：https://github.com/hustvl/Vim

git clone https://github.com/hustvl/Vim.git

1.1安装教程

安装教程：下载好vision mamba后，根据下面的教程一步一步安装即可成功。

vision mamba 运行训练记录，解决bimamba_type错误

1.2问题总结

问题总结：遇见的问题可以参考这个链接，总结的比较全面。

Mamba 环境安装踩坑问题汇总及解决方法

1.3安装总结

关键就是下载causal_conv1d和mamba_ssm，最好是下载离线的whl文件，然后再用pip进行安装。值得注意的一点就是要用官方项目里的mamba_ssm替换安装在conda环境里的mamba_ssm。

第二章：即插即用模块

2.1模块一：Mamba Vision

Github：https://github.com/hustvl/Vim；
下载代码，配置好环境后，用下面的代码替换Vim/vim/models_mamba.py，即可直接运行；

运行指令

python models_mamba.py

代码：models_mamba.py （直接替换文件代码内容，注意名称请勿错误创建py文件。）

# Copyright (c) 2015-present, Facebook, Inc.# All rights reserved.import torch import torch.nn as nn from functools import partial from torch import Tensor from typing import Optional from timm.models.vision_transformer import VisionTransformer, _cfg from timm.models.registry import register_model from timm.models.layers import trunc_normal_, lecun_normal_ from timm.models.layers import DropPath, to_2tuple from timm.models.vision_transformer import _load_weights import math from collections import namedtuple from mamba_ssm.modules.mamba_simple import Mamba from mamba_ssm.utils.generation import GenerationMixin from mamba_ssm.utils.hf import load_config_hf, load_state_dict_hf from rope import * import random try: from mamba_ssm.ops.triton.layernorm import RMSNorm, layer_norm_fn, rms_norm_fn except ImportError: RMSNorm, layer_norm_fn, rms_norm_fn = None, None, None __all__ =['vim_tiny_patch16_224', 'vim_small_patch16_224', 'vim_base_patch16_224', 'vim_tiny_patch16_384', 'vim_small_patch16_384', 'vim_base_patch16_384', ] class PatchEmbed(nn.Module): """ 2D Image to Patch Embedding """ def __init__(self, img_size=224, patch_size=16, stride=16, in_chans=3, embed_dim=768, norm_layer=None, flatten=True): super().__init__() img_size = to_2tuple(img_size) patch_size = to_2tuple(patch_size) self.img_size = img_size self.patch_size = patch_size self.grid_size =((img_size[0] - patch_size[0])// stride +1,(img_size[1] - patch_size[1])// stride +1) self.num_patches = self.grid_size[0] * self.grid_size[1] self.flatten = flatten self.proj = nn.Conv2d(in_chans, embed_dim, kernel_size=patch_size, stride=stride) self.norm = norm_layer(embed_dim) if norm_layer else nn.Identity() def forward(self, x): B, C, H, W = x.shape assert H == self.img_size[0] and W == self.img_size[1], \ f"Input image size ({H}*{W}) doesn't match model ({self.img_size[0]}*{self.img_size[1]})." x = self.proj(x) if self.flatten: x = x.flatten(2).transpose(1,2) # BCHW -> BNC x = self.norm(x) return x class Block(nn.Module): def __init__( self, dim, mixer_cls, norm_cls=nn.LayerNorm, fused_add_norm=False, residual_in_fp32=False,drop_path=0.,): """ Simple block wrapping a mixer class with LayerNorm/RMSNorm and residual connection" This Block has a slightly different structure compared to a regular prenorm Transformer block. The standard block is: LN -> MHA/MLP -> Add. [Ref: https://arxiv.org/abs/2002.04745] Here we have: Add -> LN -> Mixer, returning both the hidden_states (output of the mixer) and the residual. This is purely for performance reasons, as we can fuse add and LayerNorm. The residual needs to be provided (except for the very first block). """ super().__init__() self.residual_in_fp32 = residual_in_fp32 self.fused_add_norm = fused_add_norm self.mixer = mixer_cls(dim) self.norm = norm_cls(dim) self.drop_path = DropPath(drop_path) if drop_path >0. else nn.Identity() if self.fused_add_norm: assert RMSNorm is not None, "RMSNorm import fails" assert isinstance( self.norm,(nn.LayerNorm, RMSNorm)), "Only LayerNorm and RMSNorm are supported for fused_add_norm" def forward( self, hidden_states: Tensor, residual: Optional[Tensor] = None, inference_params=None ): r"""Pass the input through the encoder layer. Args: hidden_states: the sequence to the encoder layer (required). residual: hidden_states = Mixer(LN(residual))""" if not self.fused_add_norm: if residual is None: residual = hidden_states else: residual = residual + self.drop_path(hidden_states) hidden_states = self.norm(residual.to(dtype=self.norm.weight.dtype)) if self.residual_in_fp32: residual = residual.to(torch.float32) else: fused_add_norm_fn = rms_norm_fn if isinstance(self.norm, RMSNorm) else layer_norm_fn if residual is None: hidden_states, residual = fused_add_norm_fn( hidden_states, self.norm.weight, self.norm.bias, residual=residual, prenorm=True, residual_in_fp32=self.residual_in_fp32, eps=self.norm.eps, ) else: hidden_states, residual = fused_add_norm_fn( self.drop_path(hidden_states), self.norm.weight, self.norm.bias, residual=residual, prenorm=True, residual_in_fp32=self.residual_in_fp32, eps=self.norm.eps, ) hidden_states = self.mixer(hidden_states, inference_params=inference_params) return hidden_states, residual def allocate_inference_cache(self, batch_size, max_seqlen, dtype=None, **kwargs): return self.mixer.allocate_inference_cache(batch_size, max_seqlen, dtype=dtype, **kwargs) def create_block( d_model, ssm_cfg=None, norm_epsilon=1e-5, drop_path=0., rms_norm=False, residual_in_fp32=False, fused_add_norm=False, layer_idx=None, device=None, dtype=None, if_bimamba=False, bimamba_type="none", if_devide_out=False, init_layer_scale=None, ): if if_bimamba: bimamba_type = "v1" if ssm_cfg is None: ssm_cfg = {} factory_kwargs = {"device": device, "dtype": dtype} mixer_cls = partial(Mamba, layer_idx=layer_idx, bimamba_type=bimamba_type, if_devide_out=if_devide_out, init_layer_scale=init_layer_scale, **ssm_cfg, **factory_kwargs) norm_cls = partial( nn.LayerNorm if not rms_norm else RMSNorm, eps=norm_epsilon, **factory_kwargs ) block = Block( d_model, mixer_cls, norm_cls=norm_cls, drop_path=drop_path, fused_add_norm=fused_add_norm, residual_in_fp32=residual_in_fp32, ) block.layer_idx = layer_idx return block # https://github.com/huggingface/transformers/blob/c28d04e9e252a1a099944e325685f14d242ecdcd/src/transformers/models/gpt2/modeling_gpt2.py#L454 def _init_weights( module, n_layer, initializer_range=0.02, # Now only used for embedding layer. rescale_prenorm_residual=True, n_residuals_per_layer=1, # Change to 2 if we have MLP ): if isinstance(module, nn.Linear): if module.bias is not None: if not getattr(module.bias, "_no_reinit", False): nn.init.zeros_(module.bias) elif isinstance(module, nn.Embedding): nn.init.normal_(module.weight, std=initializer_range) if rescale_prenorm_residual: # Reinitialize selected weights subject to the OpenAI GPT-2 Paper Scheme: # > A modified initialization which accounts for the accumulation on the residual path with model depth. Scale # > the weights of residual layers at initialization by a factor of 1/√N where N is the # of residual layers. # > -- GPT-2 :: https://openai.com/blog/better-language-models/ # # Reference (Megatron-LM): https://github.com/NVIDIA/Megatron-LM/blob/main/megatron/model/gpt_model.py for name, p in module.named_parameters(): if name in ["out_proj.weight", "fc2.weight"]: # Special Scaled Initialization --> There are 2 Layer Norms per Transformer Block # Following Pytorch init, except scale by 1/sqrt(2 * n_layer) # We need to reinit p since this code could be called multiple times # Having just p *= scale would repeatedly scale it down nn.init.kaiming_uniform_(p, a=math.sqrt(5)) with torch.no_grad(): p /= math.sqrt(n_residuals_per_layer * n_layer) def segm_init_weights(m): if isinstance(m, nn.Linear): trunc_normal_(m.weight, std=0.02) if isinstance(m, nn.Linear) and m.bias is not None: nn.init.constant_(m.bias, 0) elif isinstance(m, nn.Conv2d): # NOTE conv was left to pytorch default in my original init lecun_normal_(m.weight) if m.bias is not None: nn.init.zeros_(m.bias) elif isinstance(m, (nn.LayerNorm, nn.GroupNorm, nn.BatchNorm2d)): nn.init.zeros_(m.bias) nn.init.ones_(m.weight) class VisionMamba(nn.Module): def __init__(self, img_size=224, patch_size=16, stride=16, depth=24, embed_dim=192, channels=3, num_classes=1000, ssm_cfg=None, drop_rate=0., drop_path_rate=0.1, norm_epsilon: float = 1e-5, rms_norm: bool = False, initializer_cfg=None, fused_add_norm=False, residual_in_fp32=False, device=None, dtype=None, ft_seq_len=None, pt_hw_seq_len=14, if_bidirectional=False, final_pool_type='none', if_abs_pos_embed=False, if_rope=False, if_rope_residual=False, flip_img_sequences_ratio=-1., if_bimamba=False, bimamba_type="none", if_cls_token=False, if_devide_out=False, init_layer_scale=None, use_double_cls_token=False, use_middle_cls_token=False, **kwargs): factory_kwargs = {"device": device, "dtype": dtype} # add factory_kwargs into kwargs kwargs.update(factory_kwargs) super().__init__() self.residual_in_fp32 = residual_in_fp32 self.fused_add_norm = fused_add_norm self.if_bidirectional = if_bidirectional self.final_pool_type = final_pool_type self.if_abs_pos_embed = if_abs_pos_embed self.if_rope = if_rope self.if_rope_residual = if_rope_residual self.flip_img_sequences_ratio = flip_img_sequences_ratio self.if_cls_token = if_cls_token self.use_double_cls_token = use_double_cls_token self.use_middle_cls_token = use_middle_cls_token self.num_tokens = 1 if if_cls_token else 0 # pretrain parameters self.num_classes = num_classes self.d_model = self.num_features = self.embed_dim = embed_dim # num_features for consistency with other models self.patch_embed = PatchEmbed( img_size=img_size, patch_size=patch_size, stride=stride, in_chans=channels, embed_dim=embed_dim) num_patches = self.patch_embed.num_patches if if_cls_token: if use_double_cls_token: self.cls_token_head = nn.Parameter(torch.zeros(1, 1, self.embed_dim)) self.cls_token_tail = nn.Parameter(torch.zeros(1, 1, self.embed_dim)) self.num_tokens = 2 else: self.cls_token = nn.Parameter(torch.zeros(1, 1, self.embed_dim)) # self.num_tokens = 1 if if_abs_pos_embed: self.pos_embed = nn.Parameter(torch.zeros(1, num_patches + self.num_tokens, self.embed_dim)) self.pos_drop = nn.Dropout(p=drop_rate) if if_rope: half_head_dim = embed_dim // 2 hw_seq_len = img_size // patch_size self.rope = VisionRotaryEmbeddingFast( dim=half_head_dim, pt_seq_len=pt_hw_seq_len, ft_seq_len=hw_seq_len ) self.head = nn.Linear(self.num_features, num_classes) if num_classes > 0 else nn.Identity() # TODO: release this comment dpr = [x.item() for x in torch.linspace(0, drop_path_rate, depth)] # stochastic depth decay rule # import ipdb;ipdb.set_trace() inter_dpr = [0.0] + dpr self.drop_path = DropPath(drop_path_rate) if drop_path_rate > 0. else nn.Identity() # transformer blocks self.layers = nn.ModuleList( [ create_block( embed_dim, ssm_cfg=ssm_cfg, norm_epsilon=norm_epsilon, rms_norm=rms_norm, residual_in_fp32=residual_in_fp32, fused_add_norm=fused_add_norm, layer_idx=i, if_bimamba=if_bimamba, bimamba_type=bimamba_type, drop_path=inter_dpr[i], if_devide_out=if_devide_out, init_layer_scale=init_layer_scale, **factory_kwargs, ) for i in range(depth) ] ) # output head self.norm_f = (nn.LayerNorm if not rms_norm else RMSNorm)( embed_dim, eps=norm_epsilon, **factory_kwargs ) # self.pre_logits = nn.Identity() # original init self.patch_embed.apply(segm_init_weights) self.head.apply(segm_init_weights) if if_abs_pos_embed: trunc_normal_(self.pos_embed, std=.02) if if_cls_token: if use_double_cls_token: trunc_normal_(self.cls_token_head, std=.02) trunc_normal_(self.cls_token_tail, std=.02) else: trunc_normal_(self.cls_token, std=.02) # mamba init self.apply( partial( _init_weights, n_layer=depth, **(initializer_cfg if initializer_cfg is not None else {}), ) ) def allocate_inference_cache(self, batch_size, max_seqlen, dtype=None, **kwargs): return { i: layer.allocate_inference_cache(batch_size, max_seqlen, dtype=dtype, **kwargs) for i, layer in enumerate(self.layers) } @torch.jit.ignore def no_weight_decay(self): return {"pos_embed", "cls_token", "dist_token", "cls_token_head", "cls_token_tail"} @torch.jit.ignore() def load_pretrained(self, checkpoint_path, prefix=""): _load_weights(self, checkpoint_path, prefix) def forward_features(self, x, inference_params=None, if_random_cls_token_position=False, if_random_token_rank=False): # taken from https://github.com/rwightman/pytorch-image-models/blob/master/timm/models/vision_transformer.py# with slight modifications to add the dist_token x = self.patch_embed(x) B, M, _ = x.shape if self.if_cls_token: if self.use_double_cls_token: cls_token_head = self.cls_token_head.expand(B, -1, -1) cls_token_tail = self.cls_token_tail.expand(B, -1, -1) token_position =[0, M + 1] x = torch.cat((cls_token_head, x, cls_token_tail), dim=1) M = x.shape[1] else: if self.use_middle_cls_token: cls_token = self.cls_token.expand(B,-1,-1) token_position = M //2 # add cls token in the middle x = torch.cat((x[:,:token_position,:], cls_token, x[:, token_position:,:]), dim=1) elif if_random_cls_token_position: cls_token = self.cls_token.expand(B,-1,-1) token_position = random.randint(0, M) x = torch.cat((x[:,:token_position,:], cls_token, x[:, token_position:,:]), dim=1) print("token_position: ", token_position) else: cls_token = self.cls_token.expand(B,-1,-1) # stole cls_tokens impl from Phil Wang, thanks token_position =0 x = torch.cat((cls_token, x), dim=1) M = x.shape[1] if self.if_abs_pos_embed: # if new_grid_size[0] == self.patch_embed.grid_size[0] and new_grid_size[1] == self.patch_embed.grid_size[1]: # x = x + self.pos_embed # else: # pos_embed = interpolate_pos_embed_online( # self.pos_embed, self.patch_embed.grid_size, new_grid_size,0 # ) x = x + self.pos_embed x = self.pos_drop(x) if if_random_token_rank: # 生成随机 shuffle 索引 shuffle_indices = torch.randperm(M) if isinstance(token_position, list): print("original value: ", x[0, token_position[0],0], x[0, token_position[1],0]) else: print("original value: ", x[0, token_position,0]) print("original token_position: ", token_position) # 执行 shuffle x = x[:, shuffle_indices,:] if isinstance(token_position, list): # 找到 cls token 在 shuffle 之后的新位置 new_token_position = [torch.where(shuffle_indices == token_position[i])[0].item() for i in range(len(token_position))] token_position = new_token_position else: # 找到 cls token 在 shuffle 之后的新位置 token_position = torch.where(shuffle_indices == token_position)[0].item()if isinstance(token_position, list): print("new value: ", x[0, token_position[0], 0], x[0, token_position[1], 0]) else: print("new value: ", x[0, token_position, 0]) print("new token_position: ", token_position) if_flip_img_sequences = False if self.flip_img_sequences_ratio >0 and (self.flip_img_sequences_ratio - random.random())> 1e-5: x = x.flip([1]) if_flip_img_sequences = True # mamba impl residual = None hidden_states = x if not self.if_bidirectional: forlayerin self.layers: if if_flip_img_sequences and self.if_rope: hidden_states = hidden_states.flip([1])if residual is not None: residual = residual.flip([1])# rope aboutif self.if_rope: hidden_states = self.rope(hidden_states)if residual is not None and self.if_rope_residual: residual = self.rope(residual)if if_flip_img_sequences and self.if_rope: hidden_states = hidden_states.flip([1])if residual is not None: residual = residual.flip([1]) hidden_states, residual = layer( hidden_states, residual, inference_params=inference_params ) else: # get two layers in a single for-loopforiin range(len(self.layers) // 2): if self.if_rope: hidden_states = self.rope(hidden_states)if residual is not None and self.if_rope_residual: residual = self.rope(residual) hidden_states_f, residual_f = self.layers[i * 2]( hidden_states, residual, inference_params=inference_params ) hidden_states_b, residual_b = self.layers[i * 2 + 1]( hidden_states.flip([1]), None if residual == None else residual.flip([1]), inference_params=inference_params ) hidden_states = hidden_states_f + hidden_states_b.flip([1]) residual = residual_f + residual_b.flip([1])if not self.fused_add_norm: if residual is None: residual = hidden_states else: residual = residual + self.drop_path(hidden_states) hidden_states = self.norm_f(residual.to(dtype=self.norm_f.weight.dtype)) else: # Set prenorm=False here since we don't need the residual fused_add_norm_fn = rms_norm_fn if isinstance(self.norm_f, RMSNorm)else layer_norm_fn hidden_states = fused_add_norm_fn( self.drop_path(hidden_states), self.norm_f.weight, self.norm_f.bias, eps=self.norm_f.eps, residual=residual, prenorm=False, residual_in_fp32=self.residual_in_fp32, )# return only cls token if it existsif self.if_cls_token: if self.use_double_cls_token: return(hidden_states[:, token_position[0], :] + hidden_states[:, token_position[1], :]) / 2 else: if self.use_middle_cls_token: return hidden_states[:, token_position, :]elif if_random_cls_token_position: return hidden_states[:, token_position, :] else: return hidden_states[:, token_position, :]if self.final_pool_type =='none':return hidden_states[:, -1, :]elif self.final_pool_type =='mean':return hidden_states.mean(dim=1)elif self.final_pool_type =='max':return hidden_states elif self.final_pool_type =='all':return hidden_states else: raise NotImplementedError def forward(self, x, return_features=False, inference_params=None, if_random_cls_token_position=False, if_random_token_rank=False): x = self.forward_features(x, inference_params, if_random_cls_token_position=if_random_cls_token_position, if_random_token_rank=if_random_token_rank)if return_features: return x x = self.head(x)if self.final_pool_type =='max': x = x.max(dim=1)[0]return x @register_model def vim_tiny_patch16_224_bimambav2_final_pool_mean_abs_pos_embed_with_midclstok_div2(pretrained=False, **kwargs): model = VisionMamba(patch_size=16, embed_dim=192, depth=24, rms_norm=True, residual_in_fp32=True, fused_add_norm=True, final_pool_type='mean', if_abs_pos_embed=True, if_rope=False, if_rope_residual=False, bimamba_type="v2", if_cls_token=True, if_devide_out=True, use_middle_cls_token=True, **kwargs) model.default_cfg = _cfg()if pretrained: checkpoint = torch.hub.load_state_dict_from_url(url="to.do", map_location="cpu", check_hash=True ) model.load_state_dict(checkpoint["model"])return model @register_model def vim_tiny_patch16_stride8_224_bimambav2_final_pool_mean_abs_pos_embed_with_midclstok_div2(pretrained=False, **kwargs): model = VisionMamba(patch_size=16, stride=8, embed_dim=192, depth=24, rms_norm=True, residual_in_fp32=True, fused_add_norm=True, final_pool_type='mean', if_abs_pos_embed=True, if_rope=False, if_rope_residual=False, bimamba_type="v2", if_cls_token=True, if_devide_out=True, use_middle_cls_token=True, **kwargs) model.default_cfg = _cfg()if pretrained: checkpoint = torch.hub.load_state_dict_from_url(url="to.do", map_location="cpu", check_hash=True ) model.load_state_dict(checkpoint["model"])return model @register_model def vim_small_patch16_224_bimambav2_final_pool_mean_abs_pos_embed_with_midclstok_div2(pretrained=False, **kwargs): model = VisionMamba(patch_size=16, embed_dim=384, depth=24, rms_norm=True, residual_in_fp32=True, fused_add_norm=True, final_pool_type='mean', if_abs_pos_embed=True, if_rope=False, if_rope_residual=False, bimamba_type="v2", if_cls_token=True, if_devide_out=True, use_middle_cls_token=True, **kwargs) model.default_cfg = _cfg()if pretrained: checkpoint = torch.hub.load_state_dict_from_url(url="to.do", map_location="cpu", check_hash=True ) model.load_state_dict(checkpoint["model"])return model @register_model def vim_small_patch16_stride8_224_bimambav2_final_pool_mean_abs_pos_embed_with_midclstok_div2(pretrained=False, **kwargs): model = VisionMamba(patch_size=16, stride=8, embed_dim=384, depth=24, rms_norm=True, residual_in_fp32=True, fused_add_norm=True, final_pool_type='mean', if_abs_pos_embed=True, if_rope=False, if_rope_residual=False, bimamba_type="v2", if_cls_token=True, if_devide_out=True, use_middle_cls_token=True, **kwargs) model.default_cfg = _cfg()if pretrained: checkpoint = torch.hub.load_state_dict_from_url(url="to.do", map_location="cpu", check_hash=True ) model.load_state_dict(checkpoint["model"])return model if __name__ =='__main__':# cuda or cpu device = torch.device("cuda"if torch.cuda.is_available()else"cpu") print(device)# 实例化模型得到分类结果 inputs = torch.randn(1, 3, 224, 224).to(device) model = vim_small_patch16_stride8_224_bimambav2_final_pool_mean_abs_pos_embed_with_midclstok_div2(pretrained=False).to(device) print(model) outputs = model(inputs) print(outputs.shape)# 实例化mamba模块，输入输出特征维度不变 B C H W x = torch.rand(10, 16, 64, 128).to(device) B, C, H, W = x.shape print("输入特征维度：", x.shape) x = x.view(B, C, H * W).permute(0, 2, 1) print("维度变换：", x.shape) mamba = create_block(d_model=C).to(device)# mamba模型代码中返回的是一个元组：hidden_states, residual hidden_states, residual = mamba(x) x = hidden_states.permute(0, 2, 1).view(B, C, H, W) print("输出特征维度：", x.shape)

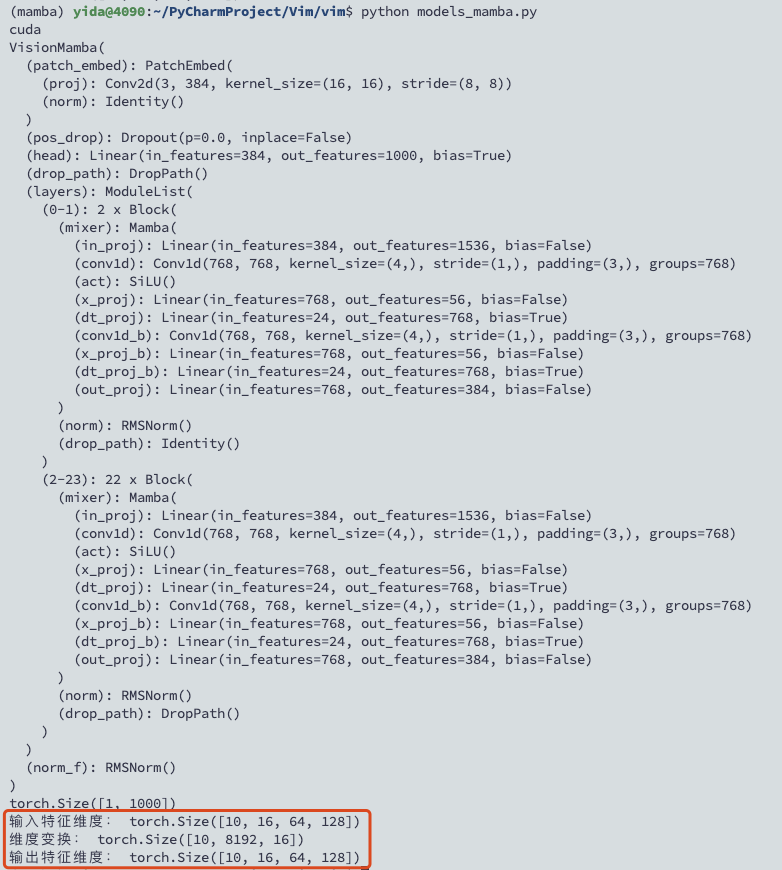

运行结果

2.2模块二：MambaIR

B站UP主：@箫张跋扈

视频地址：Mamba Back！一种来自于Mamba领域的即插即用模块(TimeMachine)，用于时间序列任务！

下载好代码后，把下面的代码放到MambaIR.py文件中，然后再运行即可得到结果。

代码：MambaIR

# Code Implementation of the MambaIR Modelimport warnings warnings.filterwarnings("ignore")import math import torch import torch.nn as nn import torch.nn.functional as F from functools import partial from typing import Optional, Callable from timm.models.layers import DropPath, to_2tuple, trunc_normal_ from mamba_ssm.ops.selective_scan_interface import selective_scan_fn, selective_scan_ref from einops import rearrange, repeat """ 最近，选择性结构化状态空间模型，特别是改进版本的Mamba，在线性复杂度的远程依赖建模方面表现出了巨大的潜力。 然而，标准Mamba在低级视觉方面仍然面临一定的挑战，例如局部像素遗忘和通道冗余。在这项工作中，我们引入了局部增强和通道注意力来改进普通 Mamba。 通过这种方式，我们利用了局部像素相似性并减少了通道冗余。大量的实验证明了我们方法的优越性。 """ NEG_INF =-1000000 class ChannelAttention(nn.Module): """Channel attention used in RCAN. Args: num_feat (int): Channel number of intermediate features. squeeze_factor (int): Channel squeeze factor. Default: 16. """ def __init__(self, num_feat, squeeze_factor=16): super(ChannelAttention, self).__init__() self.attention = nn.Sequential( nn.AdaptiveAvgPool2d(1), nn.Conv2d(num_feat, num_feat // squeeze_factor, 1, padding=0), nn.ReLU(inplace=True), nn.Conv2d(num_feat // squeeze_factor, num_feat, 1, padding=0), nn.Sigmoid()) def forward(self, x): y = self.attention(x)return x * y class CAB(nn.Module): def __init__(self, num_feat, is_light_sr= False, compress_ratio=3,squeeze_factor=30): super(CAB, self).__init__()if is_light_sr: # we use depth-wise conv for light-SR to achieve more efficient self.cab = nn.Sequential( nn.Conv2d(num_feat, num_feat, 3, 1, 1, groups=num_feat), ChannelAttention(num_feat, squeeze_factor)) else: # for classic SR self.cab = nn.Sequential( nn.Conv2d(num_feat, num_feat // compress_ratio, 3, 1, 1), nn.GELU(), nn.Conv2d(num_feat // compress_ratio, num_feat, 3, 1, 1), ChannelAttention(num_feat, squeeze_factor)) def forward(self, x): return self.cab(x) class Mlp(nn.Module): def __init__(self, in_features, hidden_features=None, out_features=None, act_layer=nn.GELU, drop=0.): super().__init__() out_features = out_features or in_features hidden_features = hidden_features or in_features self.fc1 = nn.Linear(in_features, hidden_features) self.act = act_layer() self.fc2 = nn.Linear(hidden_features, out_features) self.drop = nn.Dropout(drop) def forward(self, x): x = self.fc1(x) x = self.act(x) x = self.drop(x) x = self.fc2(x) x = self.drop(x)return x class DynamicPosBias(nn.Module): def __init__(self, dim, num_heads): super().__init__() self.num_heads = num_heads self.pos_dim = dim // 4 self.pos_proj = nn.Linear(2, self.pos_dim) self.pos1 = nn.Sequential( nn.LayerNorm(self.pos_dim), nn.ReLU(inplace=True), nn.Linear(self.pos_dim, self.pos_dim), ) self.pos2 = nn.Sequential( nn.LayerNorm(self.pos_dim), nn.ReLU(inplace=True), nn.Linear(self.pos_dim, self.pos_dim)) self.pos3 = nn.Sequential( nn.LayerNorm(self.pos_dim), nn.ReLU(inplace=True), nn.Linear(self.pos_dim, self.num_heads)) def forward(self, biases): pos = self.pos3(self.pos2(self.pos1(self.pos_proj(biases))))return pos def flops(self, N): flops = N * 2 * self.pos_dim flops += N * self.pos_dim * self.pos_dim flops += N * self.pos_dim * self.pos_dim flops += N * self.pos_dim * self.num_heads return flops class Attention(nn.Module): r""" Multi-head self attention module with dynamic position bias. Args: dim (int): Number of input channels. num_heads (int): Number of attention heads. qkv_bias (bool, optional): If True, add a learnable bias to query, key, value. Default: True qk_scale (float | None, optional): Override default qk scale of head_dim ** -0.5ifset attn_drop (float, optional): Dropout ratio of attention weight. Default: 0.0 proj_drop (float, optional): Dropout ratio of output. Default: 0.0""" def __init__(self, dim, num_heads, qkv_bias=True, qk_scale=None, attn_drop=0., proj_drop=0., position_bias=True): super().__init__() self.dim = dim self.num_heads = num_heads head_dim = dim // num_heads self.scale = qk_scale or head_dim ** -0.5 self.position_bias = position_bias if self.position_bias: self.pos = DynamicPosBias(self.dim // 4, self.num_heads) self.qkv = nn.Linear(dim, dim * 3, bias=qkv_bias) self.attn_drop = nn.Dropout(attn_drop) self.proj = nn.Linear(dim, dim) self.proj_drop = nn.Dropout(proj_drop) self.softmax = nn.Softmax(dim=-1) def forward(self, x, H, W, mask=None): """ Args: x: input features with shape of (num_groups*B, N, C) mask: (0/-inf) mask with shape of (num_groups, Gh*Gw, Gh*Gw) or None H: height of each group W: width of each group """ group_size =(H, W) B_, N, C = x.shape assert H * W == N qkv = self.qkv(x).reshape(B_, N, 3, self.num_heads, C // self.num_heads).permute(2, 0, 3, 1, 4).contiguous() q, k, v= qkv[0], qkv[1], qkv[2] q = q * self.scale attn =(q @ k.transpose(-2, -1))# (B_, self.num_heads, N, N), N = H*Wif self.position_bias: # generate mother-set position_bias_h = torch.arange(1 - group_size[0], group_size[0], device=attn.device) position_bias_w = torch.arange(1 - group_size[1], group_size[1], device=attn.device) biases = torch.stack(torch.meshgrid([position_bias_h, position_bias_w]))# 2, 2Gh-1, 2W2-1 biases = biases.flatten(1).transpose(0, 1).contiguous().float()# (2h-1)*(2w-1) 2# get pair-wise relative position index for each token inside the window coords_h = torch.arange(group_size[0], device=attn.device) coords_w = torch.arange(group_size[1], device=attn.device) coords = torch.stack(torch.meshgrid([coords_h, coords_w]))# 2, Gh, Gw coords_flatten = torch.flatten(coords, 1)# 2, Gh*Gw relative_coords = coords_flatten[:, :, None] - coords_flatten[:, None, :]# 2, Gh*Gw, Gh*Gw relative_coords = relative_coords.permute(1, 2, 0).contiguous()# Gh*Gw, Gh*Gw, 2 relative_coords[:, :, 0]+= group_size[0] - 1# shift to start from 0 relative_coords[:, :, 1]+= group_size[1] - 1 relative_coords[:, :, 0] *=2 * group_size[1] - 1 relative_position_index = relative_coords.sum(-1)# Gh*Gw, Gh*Gw pos = self.pos(biases)# 2Gh-1 * 2Gw-1, heads# select position bias relative_position_bias = pos[relative_position_index.view(-1)].view( group_size[0] * group_size[1], group_size[0] * group_size[1], -1)# Gh*Gw,Gh*Gw,nH relative_position_bias = relative_position_bias.permute(2, 0, 1).contiguous()# nH, Gh*Gw, Gh*Gw attn = attn + relative_position_bias.unsqueeze(0)if mask is not None: nP = mask.shape[0] attn = attn.view(B_ // nP, nP, self.num_heads, N, N) + mask.unsqueeze(1).unsqueeze(0)# (B, nP, nHead, N, N) attn = attn.view(-1, self.num_heads, N, N) attn = self.softmax(attn) else: attn = self.softmax(attn) attn = self.attn_drop(attn) x =(attn @ v).transpose(1, 2).reshape(B_, N, C) x = self.proj(x) x = self.proj_drop(x)return x class SS2D(nn.Module): def __init__( self, d_model, d_state=16, d_conv=3, expand=2., dt_rank="auto", dt_min=0.001, dt_max=0.1, dt_init="random", dt_scale=1.0, dt_init_floor=1e-4, dropout=0., conv_bias=True, bias=False, device=None, dtype=None, **kwargs, ): factory_kwargs ={"device": device, "dtype": dtype} super().__init__() self.d_model = d_model self.d_state = d_state self.d_conv = d_conv self.expand =expand self.d_inner = int(self.expand * self.d_model) self.dt_rank = math.ceil(self.d_model / 16)if dt_rank =="auto"else dt_rank self.in_proj = nn.Linear(self.d_model, self.d_inner * 2, bias=bias, **factory_kwargs) self.conv2d = nn.Conv2d(in_channels=self.d_inner, out_channels=self.d_inner, groups=self.d_inner, bias=conv_bias, kernel_size=d_conv, padding=(d_conv - 1) // 2, **factory_kwargs, ) self.act = nn.SiLU() self.x_proj =( nn.Linear(self.d_inner, (self.dt_rank + self.d_state * 2), bias=False, **factory_kwargs), nn.Linear(self.d_inner, (self.dt_rank + self.d_state * 2), bias=False, **factory_kwargs), nn.Linear(self.d_inner, (self.dt_rank + self.d_state * 2), bias=False, **factory_kwargs), nn.Linear(self.d_inner, (self.dt_rank + self.d_state * 2), bias=False, **factory_kwargs), ) self.x_proj_weight = nn.Parameter(torch.stack([t.weight fortin self.x_proj], dim=0))# (K=4, N, inner) del self.x_proj self.dt_projs =( self.dt_init(self.dt_rank, self.d_inner, dt_scale, dt_init, dt_min, dt_max, dt_init_floor, **factory_kwargs), self.dt_init(self.dt_rank, self.d_inner, dt_scale, dt_init, dt_min, dt_max, dt_init_floor, **factory_kwargs), self.dt_init(self.dt_rank, self.d_inner, dt_scale, dt_init, dt_min, dt_max, dt_init_floor, **factory_kwargs), self.dt_init(self.dt_rank, self.d_inner, dt_scale, dt_init, dt_min, dt_max, dt_init_floor, **factory_kwargs), ) self.dt_projs_weight = nn.Parameter(torch.stack([t.weight fortin self.dt_projs], dim=0))# (K=4, inner, rank) self.dt_projs_bias = nn.Parameter(torch.stack([t.bias fortin self.dt_projs], dim=0))# (K=4, inner) del self.dt_projs self.A_logs = self.A_log_init(self.d_state, self.d_inner, copies=4, merge=True)# (K=4, D, N) self.Ds = self.D_init(self.d_inner, copies=4, merge=True)# (K=4, D, N) self.selective_scan = selective_scan_fn self.out_norm = nn.LayerNorm(self.d_inner) self.out_proj = nn.Linear(self.d_inner, self.d_model, bias=bias, **factory_kwargs) self.dropout = nn.Dropout(dropout)if dropout >0. else None @staticmethod def dt_init(dt_rank, d_inner, dt_scale=1.0, dt_init="random", dt_min=0.001, dt_max=0.1, dt_init_floor=1e-4, **factory_kwargs): dt_proj = nn.Linear(dt_rank, d_inner, bias=True, **factory_kwargs)# Initialize special dt projection to preserve variance at initialization dt_init_std = dt_rank ** -0.5 * dt_scale if dt_init =="constant": nn.init.constant_(dt_proj.weight, dt_init_std)elif dt_init =="random": nn.init.uniform_(dt_proj.weight, -dt_init_std, dt_init_std) else: raise NotImplementedError # Initialize dt bias so that F.softplus(dt_bias) is between dt_min and dt_max dt = torch.exp( torch.rand(d_inner, **factory_kwargs) * (math.log(dt_max) - math.log(dt_min)) + math.log(dt_min)).clamp(min=dt_init_floor)# Inverse of softplus: https://github.com/pytorch/pytorch/issues/72759 inv_dt = dt + torch.log(-torch.expm1(-dt)) with torch.no_grad(): dt_proj.bias.copy_(inv_dt)# Our initialization would set all Linear.bias to zero, need to mark this one as _no_reinit dt_proj.bias._no_reinit = True return dt_proj @staticmethod def A_log_init(d_state, d_inner, copies=1, device=None, merge=True): # S4D real initialization A = repeat( torch.arange(1, d_state + 1, dtype=torch.float32, device=device), "n -> d n", d=d_inner, ).contiguous() A_log = torch.log(A)# Keep A_log in fp32if copies >1: A_log = repeat(A_log, "d n -> r d n", r=copies)if merge: A_log = A_log.flatten(0, 1) A_log = nn.Parameter(A_log) A_log._no_weight_decay = True return A_log @staticmethod def D_init(d_inner, copies=1, device=None, merge=True): # D "skip" parameter D = torch.ones(d_inner, device=device)if copies >1: D = repeat(D, "n1 -> r n1", r=copies)if merge: D = D.flatten(0, 1) D = nn.Parameter(D)# Keep in fp32 D._no_weight_decay = True return D def forward_core(self, x: torch.Tensor): B, C, H, W = x.shape L = H * W K =4 x_hwwh = torch.stack([x.view(B, -1, L), torch.transpose(x, dim0=2, dim1=3).contiguous().view(B, -1, L)], dim=1).view(B, 2, -1, L) xs = torch.cat([x_hwwh, torch.flip(x_hwwh, dims=[-1])], dim=1)# (1, 4, 192, 3136) x_dbl = torch.einsum("b k d l, k c d -> b k c l", xs.view(B, K, -1, L), self.x_proj_weight) dts, Bs, Cs = torch.split(x_dbl, [self.dt_rank, self.d_state, self.d_state], dim=2) dts = torch.einsum("b k r l, k d r -> b k d l", dts.view(B, K, -1, L), self.dt_projs_weight) xs = xs.float().view(B, -1, L) dts = dts.contiguous().float().view(B, -1, L)# (b, k * d, l) Bs = Bs.float().view(B, K, -1, L) Cs = Cs.float().view(B, K, -1, L)# (b, k, d_state, l) Ds = self.Ds.float().view(-1) As = -torch.exp(self.A_logs.float()).view(-1, self.d_state) dt_projs_bias = self.dt_projs_bias.float().view(-1)# (k * d) out_y = self.selective_scan( xs, dts, As, Bs, Cs, Ds, z=None, delta_bias=dt_projs_bias, delta_softplus=True, return_last_state=False, ).view(B, K, -1, L) assert out_y.dtype == torch.float inv_y = torch.flip(out_y[:, 2:4], dims=[-1]).view(B, 2, -1, L) wh_y = torch.transpose(out_y[:, 1].view(B, -1, W, H), dim0=2, dim1=3).contiguous().view(B, -1, L) invwh_y = torch.transpose(inv_y[:, 1].view(B, -1, W, H), dim0=2, dim1=3).contiguous().view(B, -1, L)return out_y[:, 0], inv_y[:, 0], wh_y, invwh_y def forward(self, x: torch.Tensor, **kwargs): B, H, W, C = x.shape xz = self.in_proj(x) x, z = xz.chunk(2, dim=-1) x = x.permute(0, 3, 1, 2).contiguous() x = self.act(self.conv2d(x)) y1, y2, y3, y4 = self.forward_core(x) assert y1.dtype == torch.float32 y = y1 + y2 + y3 + y4 y = torch.transpose(y, dim0=1, dim1=2).contiguous().view(B, H, W, -1) y = self.out_norm(y) y = y * F.silu(z) out = self.out_proj(y)if self.dropout is not None: out = self.dropout(out)return out class VSSBlock(nn.Module): def __init__( self, hidden_dim: int =0, drop_path: float =0, norm_layer: Callable[..., torch.nn.Module]= partial(nn.LayerNorm, eps=1e-6), attn_drop_rate: float =0, d_state: int =16, expand: float =2., is_light_sr: bool = False, **kwargs, ): super().__init__() self.ln_1 = norm_layer(hidden_dim) self.self_attention = SS2D(d_model=hidden_dim, d_state=d_state,expand=expand,dropout=attn_drop_rate, **kwargs) self.drop_path = DropPath(drop_path)self.skip_scale= nn.Parameter(torch.ones(hidden_dim)) self.conv_blk = CAB(hidden_dim,is_light_sr) self.ln_2 = nn.LayerNorm(hidden_dim) self.skip_scale2 = nn.Parameter(torch.ones(hidden_dim)) def forward(self, input, x_size): # x [B,HW,C] B, L, C = input.shape input = input.view(B, *x_size, C).contiguous()# [B,H,W,C] x = self.ln_1(input) x = input*self.skip_scale + self.drop_path(self.self_attention(x)) x = x*self.skip_scale2 + self.conv_blk(self.ln_2(x).permute(0, 3, 1, 2).contiguous()).permute(0, 2, 3, 1).contiguous() x = x.view(B, -1, C).contiguous()return x if __name__ =='__main__':# 初始化VSSBlock模块，hidden_dim为128 block = VSSBlock(hidden_dim=128, drop_path=0.1, attn_drop_rate=0.1, d_state=16, expand=2.0, is_light_sr=False)# 将模块转移到合适的设备上 device = torch.device("cuda"if torch.cuda.is_available()else"cpu") block = block.to(device)# 生成随机输入张量，尺寸为[B, H*W, C]，这里模拟的是批次大小为4，每个图像的尺寸是32x32，通道数为128 B, H, W, C =4, 32, 32, 128 input_tensor = torch.rand(B, H * W, C).to(device)# 计算输出 output_tensor = block(input_tensor, (H, W))# 打印输入和输出张量的尺寸 print("Input tensor size:", input_tensor.size()) print("Output tensor size:", output_tensor.size())

运行结果

第三章：经典文献阅读与追踪

Mamba原文：Mamba: Linear-Time Sequence Modeling with Selective State Spaces

经典论文

1. Vision Mamba@Vision Mamba: Efficient Visual Representation Learning with Bidirectional State Space Model
2. MambaIR@MambaIR: A Simple Baseline for Image Restoration with State-Space Model
3. U-Mamba@U-Mamba: Enhancing Long-range Dependency for Biomedical Image Segmentation

Mamba系列论文追踪

该Github链接会分享不同领域基于Mamba结构的论文

Mamba_State_Space_Model_Paper_List Public：https://github.com/Event-AHU/Mamba_State_Space_Model_Paper_List

第四章：Mamba理论与分析

我们以一篇文章FusionMamba来理解Mamba块

FusionMamba: Efficient Image Fusion with State Space Model【文献阅读】

Mamba模块

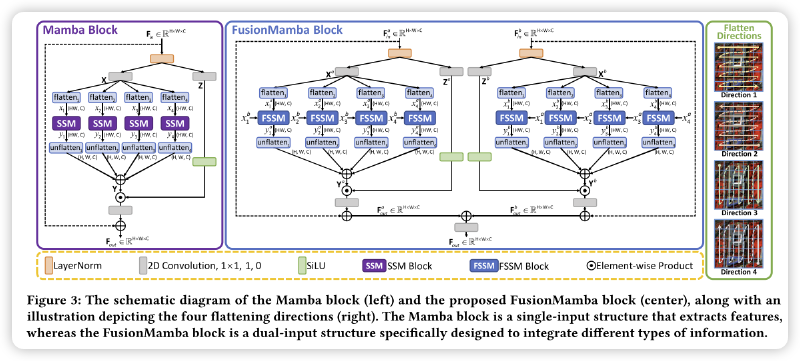

借用该论文的图3来一起学习一下Mamba模块的结构：

其中，最左边的就是Mamba模块。Vision Mamba模块要对特征图进行特征提取。因此，我们期望经过Mamba模块后的特征图的大小不变。

第一部分：把输入的特征图F_in，其维度为H，W，C送入LayerNorm层，映射得到两个不同的特征X和Z，它们的维度不变为H，W，C。
第二部分：对X沿着4个不同的方向进行Fatten展平得到1维的特征向量，这4个方向特征向量的维度是HW，C这儿和Transformer的变换类似，转换成TOKEN，然后再去进行后续计算。4个不同方向的展平方式，如上图最右边所示，就是从左到右、从上到下四个方向。
第三部分：将4个不同方向的1维特征向量送入SSM模块进行特征提取，看来SSM模块就是Mamba模块的核心了，这个我们将在后文对它进行详细的解读。
第四部分：将输出的特征向量其维度为HW，C，经过unflatten就是还原成特征图维度为H，W，C后将4个方向的特征图加起来，进行充分的融合得到特征Y。
第五部分：对最初的特征Z经过SiLU进行非线性映射，作为权重或者注意力与融合的特征图Y进行激活或者加权得到显著性的特征。最后将特征经过1×1的卷积进行映射后与输入的特征做一个残差得到最终的输出特征F_out。

关键的SSM算法

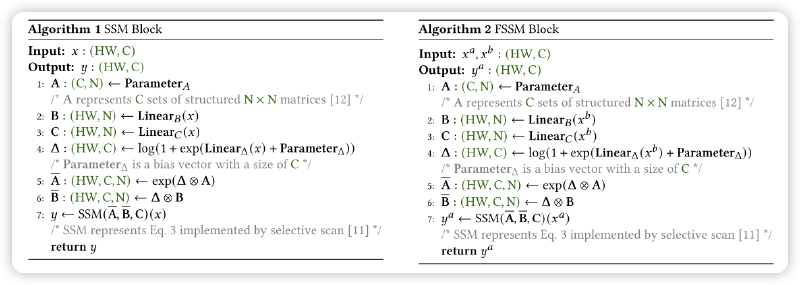

按照该论文给出的流程图，我们来对SSM算法进行一个充分的理解。如下图最左边，右边不用管是作者对其的改进。

SSM Block未完待续...

2024年06月16日18:51:25Mamba更新开始！

State Space Models

Structured state space sequence models (S4) are a recent class of sequence models for deep learning that are
broadly related to RNNs, and CNNs, and classical state space models.

SSM 模型有很多种，Mamba 论文中主要是以经典的 S4 模型为主。

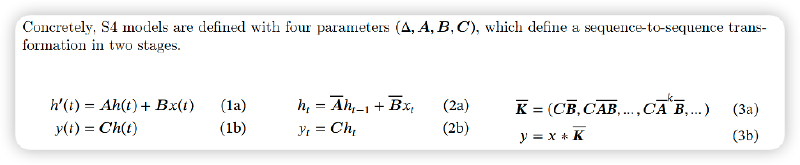

原始的 SSM 模型主要是运用在控制系统理论中，用于描述系统的动态行为和基于观测数据进行系统状态估计。如公式 1a 和 1b。其中的 1a 是状态更新方程，1b 是观测方程。

状态更新方程是基于 t 时刻对下一个时刻状态的预测。x(t)是 t 时刻的输入，B 输入矩阵：在 t 时刻的输入是如何影响当前状态的。h(t)是 t 时刻的状态，A 状态转移矩阵：如何从当前状态转换到下一个状态。h’(t)是下一个时刻的状态。

观测方程是用于观测当前状态 t 的预测值。C 是输出矩阵也叫做预测矩阵，用于影响 t 时刻状态如何影响输出。

S4 模型定义了 4 个参数（Δ，A，B，C），能够进行序列到序列的转化（特征提取），包含 2 个阶段。

Discretization

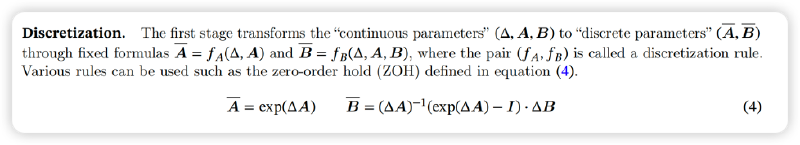

由于原始的 SSM 是计算的有关时间的连续值，但是计算机中往往计算的是有 0-1 构成的离散值。因此，第一步就上将参数（Δ，A，B）中的连续参数 A 和 B，通过离散化规则得到离散化的 A和 B，这里选择离散化的方法为 ZOH，如公式 4。不用管它具体是怎么实现的，只要知道是将连续的 A 和 B 转化成了离散的 A 和 B 就行。离散化感觉它能够有一定的正则化能力，以及将连续的 A 和 B 转化成离散的 A 和 B，便于计算机的计算。可以选择不同的离散化规则得到不同的离散化结果。

Computation

将连续的参数离散化之后，模型能够有两种计算方式：

• 线性递归（类似于 RNN，训练速度慢，推理速度快）
• 全局卷积（并行训练速度快，推理速度慢）

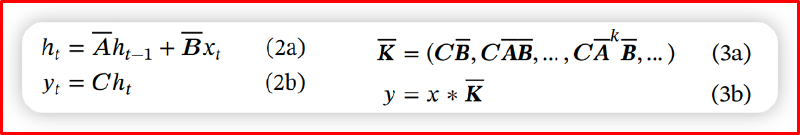

SSM 在训练的时候将采用公式 3 来进行计算，公式 3 相当于是全局卷积的方式；推理的时候用高效的自回归推理，如公式 2。这样的话，保证了 SSM 能够在训练的时候采用卷积来训练，利用它的并行计算能力，能够进行高效的训练；推理的时候采用自回归的方式来进行，这样就保留了类似 RNN 的操作，能够在推理的时候保证快速计算。

值得注意的是，公式 2 和公式 3 是等价的。将公式 2 的 h(t)一直用上一个状态来迭代的表示，然后从新整理它。可以发现公式 2 于公式 3 是等价的，公式3 的 K 相当于是卷积核，x 是包含 t 个时间步长的输入序列。

记住一点，SSM 能够在训练是利用卷积的方式保证高效的并行计算；推理的时候利用自回归的方式进行快速推理！！！、

Linear Time Invariance（LTI）

说人话，就是 SSM 具有线性时间不变的特性。即，模型训练好了那么参数Δ、A、B、C 或者离散化的 A 和 B 都是固定的。不同的输入都会关注相同的部分，没办法对输入进行选择重点关注显著性的特征。因此，Mamba 在这个 SSM（S4）的基础上，做出了三点创新。

Mamba创新 1 Selective State Space Models

算法 1 是 SSM 算法，主要的步骤就是初始化 A、B、C 和Δ；然后，通过离散化规则得到 A 和 B；最后，送入 SSM 模块得到预测的 y。两种计算方式：自回归和卷积都具有时间不变性，也就是训练好了上面的 4 个参数是固定的，没办法对输入进行有效的感知，限制了模型的性能。

算法 2 是 Mamba 对 SSM 的改进，主要是增加了一个选择。就上根据输入的 x 来自适应的得到 B、C 和Δ参数，然后再去进行离散化。这样得到的离散化 A 和 B 就和输入有关，能够通过输入来进行自适应的调整做特征的选择。输入 x 是通过全连接层映射得到的对应矩阵。那么这个时候就存在一个问题了，由于对于每个输入 x 它的参数都会变化，那么就没办法用固定的参数 A 和 B 及 C 来进行卷积的表达。因此，作者针对这样的问题设计了在GPU 上并行高效的计算方式，这就引出了下一个创新点。

Mamba创新 2 Effcient Implementation of Selective SSMs

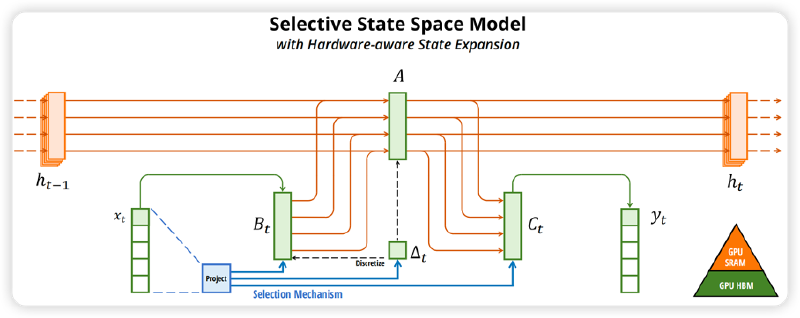

主要的工作就包含 3 个点：Kernel fusion, Parallel scan, and Recomputation。它的主要目的就是针对 SSM 设计了面向硬件感知的计算方式。简单来讲，就是针对模型的架构设计了能够在 GPU 进行快速的计算。

上图可以用公式 2 来表示：

绿色的部分可以放到 GPU 中的 HBM 中计算，橙色的放到 GPU 的 SRAM 计算。这是利用的 GPU 的特性，针对性的设计能够加快SSM 的计算效率。

图的 Project 就是对输入进行线性映射，总的来说就上选择性 SSM 的算法流程，也就上面的公式 2，这个图很好理解，对着公式 2 理一遍。

我们一直说 SSM 具有线性的时间复杂度O(L)，这是怎么回事呢？可以看见公式 2，输出只于当前 t 时刻的输入和上一个 t 时刻的状态相关。因此，它的计算时间复杂度只于它本身相关。循环迭代还有其它的计算都是常数级的，计算时间复杂度时记作 O(L)。然而，Transformer 在计算注意力的时候，它需要计算当前序列 L 于其它序列间的注意力，那么它的时间复杂度为 O(L平方)。

Mamba创新 3 A Simplified SSM Architecture

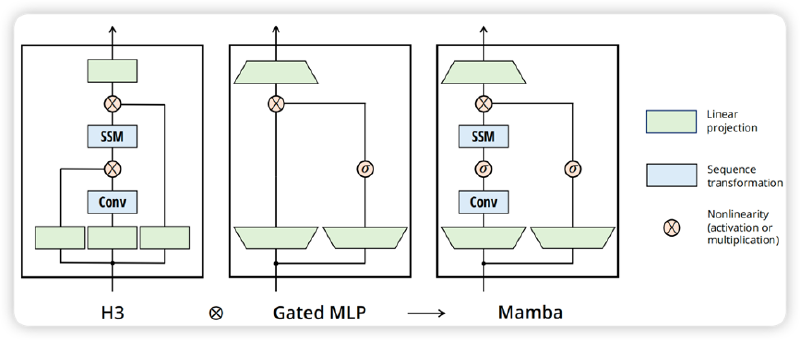

作者，基于现在主流的SSM 基础架构 H3 和 Gated MLP 设计了一个简单的 Mamba 模块，如下图所示。这就构成了我们现在的 Mamba 块，然而它的发展也并非一朝一夕，也是一步一步的探索设计了新的架构 Mamba！

这便是我对 Mamba 模块的理解，有错误或者理解不到位的地方，可以请各位和我一起来讨论学习一下！

第五章：总结和展望

1. 2024年04月29日16:57:45，今天已完成环境的安装与即插即用模块实例化和相关论文的分享；在近期会充分学习Mamba后对其理论进行分享，帮助快速简要理解原文Mamba相关理论。
2. 2024年05月02日15:56:32，今天基于一篇FusionMamba的论文补充了Mamba模块的基础知识，后面将重点介绍其中的SSM模块，就会完成本博客的分享。
3. 2024年05月24日11:00:09，感谢大家的关注。下次组会分享MambaOut，一个月左右一定把坑填完！！！
4. 2024年06月13日10:56:07，开始更新。准备先完成对 SSM 算法的充分理解以及解读，然后对整个算法过程进行梳理和总结，最后将去阅读 MambaOut 探索 Mamba 模块在视觉中的性能。
5. 2024年06月16日16:29:59，开始更新“深入浅出一问图解 Vision Mamba”，用简要的语言来描述Mamba 模块，理解其中的 SSM 机制。
6. 2024年06月16日19:21:59，基本完成，后续将继续完善内容，补充一下相关的文献以及 MambaOut 的梗和主要假设！正文该加粗和标记的地方，也会想办法优化一下。
